Molecular Devices·Cribado y selección de clones

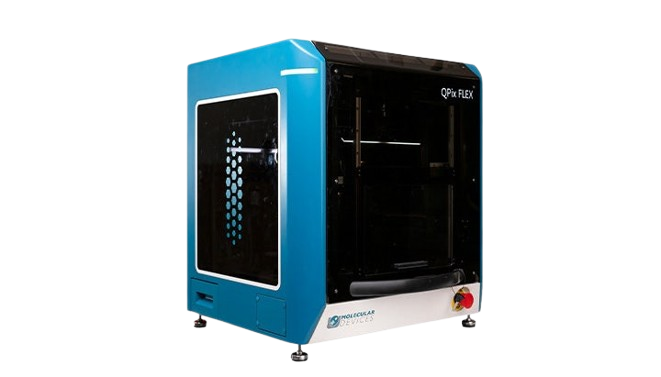

QPix FLEX

QPix FLEX — sistema de cribado y selección de clones de Molecular Devices (Instrument dimensions & weight: W 640mm x D 550mm x H 710mm (excluding handle), Weight: 80 kg).

W 640mm x D 550mm x H 710mm (excluding handle), Weight: 80 kgDimensiones

100–240V AC (50/60 Hz), Compatible, 220V AC at 4 AmpsPotencia

W 440mm x D 325mm x H 145mm, Weight: 12 kgDimensiones

Cotizar o consultar

Descripción

Conoce el equipo

QPix FLEX es un(a) sistema de cribado y selección de clones de Molecular Devices, indicado para selección de colonias, picking automatizado, verificación de monoclonalidad. Especificaciones destacadas: Instrument dimensions & weight: W 640mm x D 550mm x H 710mm (excluding handle), Weight: 80 kg; Power: 100–240V AC (50/60 Hz), Compatible, 220V AC at 4 Amps.

Aplicaciones ideales

Resuelve tu aplicación

Selección de colonias

Picking automatizado

Verificación de monoclonalidad

Especificaciones técnicas

Especificaciones
del QPix FLEX

Instrument dimensions & weight: W 640mm x D 550mm x H 710mm (excluding handle), Weight: 80 kg
Power: 100–240V AC (50/60 Hz), Compatible, 220V AC at 4 Amps
External control box dimensions: W 440mm x D 325mm x H 145mm, Weight: 12 kg
HEPA (optional): W 600mm x D 480mm x H 270mm, Weight: 25 kg, Power: 110VAC or 220VAC
Camera: CMOS color camera 20mp; USB 3.0
Deck layout: 4-position flexible
Functional reliability in anaerobic/hypoxic chamber: Yes
Ultrasonic agar height sensor: Yes
Picking efficiency: 95%
Picking speed (sterilizable tips mode): At least 260 colonies/hr
Picking speed (disposable tips mode): At least 350 colonies/hr
Picking accuracy: 99%
Plating/streaking speed - Plating: <1 min for two 8-well mini-tray as destination (16 samples/<1min)
Plating/streaking speed - Streaking: <1min/8-well mini-tray as destination
Volume range (Plating & streaking): 20–300 μL
Liquid handling Accuracy variance: <5%
Liquid handling Precision variance: <3%
Volume range (Liquid handling): 10–1000 μL
Hit consolidation/hit picking Throughput: >200 sample/h (200 μL tip, single dispense, with liquid following on)
CPU: Intel® 12th generation Core™ i9 12900
Memory: Dual 32G*2 DDR5
Storage: 1T SSD
OS: WIN 11 IOT
Monitor: 24'', 1920 x 1080
Warranty: 1 yr
Custom sterilizable metal picking pins replacement: every 5000 picks
