Molecular Devices·Lectores de microplacas

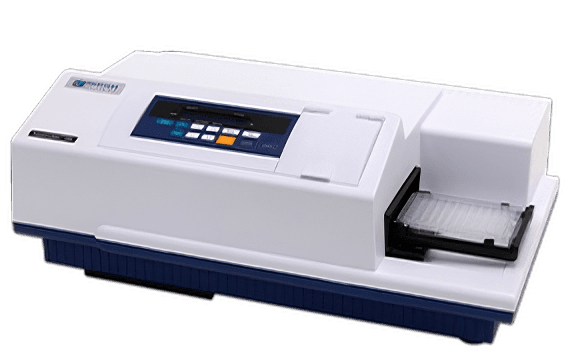

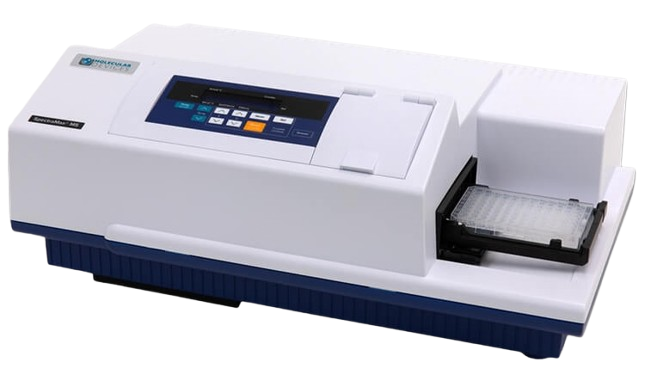

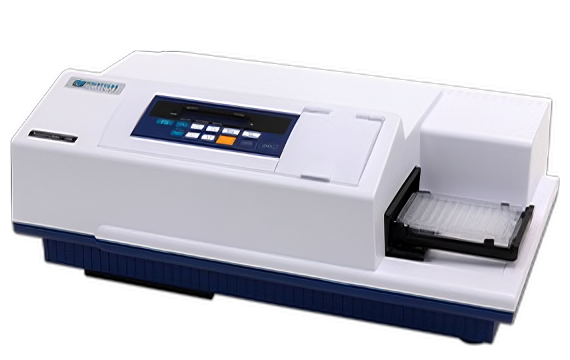

SpectraMax M3

SpectraMax M3 — lector de microplacas de Molecular Devices (Dimensions (H): 8.6 in.).

8.6 in.Dimensiones

22.8 in.Dimensiones

15.3 in.Dimensiones

Cotizar o consultar

Descripción

Conoce el equipo

SpectraMax M3 es un(a) lector de microplacas de Molecular Devices, indicado para ensayos de absorbancia, fluorescencia y luminiscencia, cuantificación de proteínas y ácidos nucleicos, ensayos celulares. Especificaciones destacadas: Dimensions (H): 8.6 in.; Dimensions (W): 22.8 in..

Aplicaciones ideales

Resuelve tu aplicación

Ensayos de absorbancia, fluorescencia y luminiscencia

Cuantificación de proteínas y ácidos nucleicos

Ensayos celulares

Especificaciones técnicas

Especificaciones
del SpectraMax M3

Dimensions (H): 8.6 in.
Dimensions (W): 22.8 in.
Dimensions (D): 15.3 in.
Dimensions (H): 22 cm
Dimensions (W): 58 cm
Dimensions (D): 39 cm
Weight: 36 lbs.
Weight: 16.4 kg
Power consumption: < 420 watts
Power source: 100–240 VAC, 3.5 A, 50/60Hz
Robotic-compatible: Yes
Plate formats: 6, 12, 24, 48, 96, 384 wells
Light source: Xenon Flash Lamp (1 joule/flash)
Detectors: 2 photomultiplier tubes (PMT)
Shaker time: 0 to 999 seconds
Temp. control: 2°C above ambient to 60°C
Temp. uniformity: < 1°C
Temp. accuracy: ±1°C
Endpoint reading: All modes
Kinetic reading: All modes
Spectral scanning: All modes
Well scanning: Abs, FI, TRF, Lum
Absorbance read time (96 wells): 0:18 minutes:seconds
Absorbance read time (384 wells): 0:49 minutes:seconds
Fluorescence Intensity read time (96 wells): 0:17 minutes:seconds
Fluorescence Intensity read time (384 wells): 0:48 minutes:seconds
Luminescence read time (96 wells): 2:00 minutes:seconds
Luminescence read time (384 wells): 7:00 minutes:seconds
Wavelength range (Absorbance): 200–1000 nm
Wavelength selection (Absorbance): Monochromator, tunable in 1.0 nm increments
Wavelength bandwidth (Absorbance): ≤ 4.0 nm
Wavelength accuracy (Absorbance): ±2.0 nm
Wavelength repeatability (Absorbance): ±0.2 nm
Photometric range: 0–4.0 OD
Photometric resolution: 0.001 OD
Photometric accuracy (microplate): < ±0.006 OD ±1.0%, 0–2 OD
Photometric accuracy (cuvette): < ±0.005 OD ±1.0%, 0–2 OD
Photometric precision: < ±0.003 OD ±1.0%, 0–2 OD
Stray light: < 0.05%
Wavelength range (Fluorescence Intensity): 250–850 nm
Wavelength selection (Fluorescence Intensity): Monochromators, tunable in 1.0 nm increments
Bandwidth (EX, EM) (Fluorescence Intensity): 9 nm, 15 nm
Optimized sensitivity (Fluorescence Intensity): ≤ 1 pM fluorescein in 96 wells, ≤ 1.5pM in 384 wells
Guaranteed sensitivity (Fluorescence Intensity): < 5 pM fluorescein in 96 wells or cuvette, < 20 pM in 384 wells
Wavelength range (Luminescence): 250–850 nm
Optimized sensitivity (Luminescence): ≤ 43pM ATP in 96 wells
Guaranteed sensitivity (Luminescence): ≤ 75pM ATP in 96 wells
Dynamic range (Luminescence): > 6 decades
Cross-talk (Luminescence): < 0.3%
