Binder·Cámaras climáticas

MKFT 115

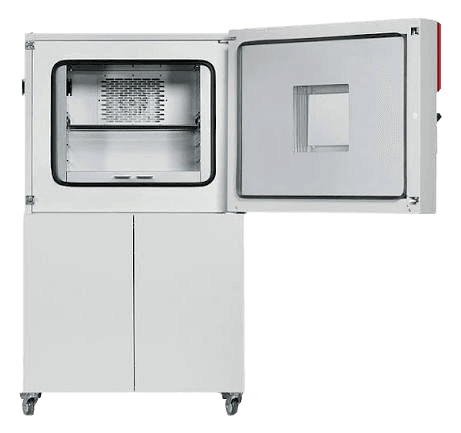

MKFT 115 — cámara climática de Binder (Temperature range: -70 to +180 °C).

-70 to +180 °CRango de temperatura

10 to 98 % RHRango de humedad

20 litersIntegrated water-storage tank

Cotizar o consultar

Descripción

Conoce el equipo

MKFT 115 es un(a) cámara climática de Binder, indicado para estudios de estabilidad, control de temperatura y humedad, ensayos de fotoestabilidad. Especificaciones destacadas: Temperature range: -70 to +180 °C; Humidity range: 10 to 98 % RH.

Aplicaciones ideales

Resuelve tu aplicación

Estudios de estabilidad

Control de temperatura y humedad

Ensayos de fotoestabilidad

Especificaciones técnicas

Especificaciones
del MKFT 115

Temperature range: -70 to +180 °C
Humidity range: 10 to 98 % RH
Integrated water-storage tank: 20 liters
Temperature uniformity dependent on set value: 0.1 to 1.3 ± K
Temperature fluctuation dependent on set value: 0.1 to 0.1 ± K
Average heating-up rate according to IEC 60068-3-5 between -40 C and 180 C: 5.5 K/min
Cooling down time from 180 C to -70 C: 120 min
Average cooling down time according to IEC 60068-3-5 between 180 C and -40 C: 4.2 K/min
Temperature range with humidity: 10 to 90 °C
Humidity range: 10 to 95 % r.F.
Temperature fluctuation with humidity dependent on set value: 0.1 to 1 ± K
Humidity fluctuation with humidity dependent on set value: ≤2.5 ± % r.F.
Max. heat compensation at 25 C and 90% RH: 400 W
Rated Voltage: 400 or 480 V
Power frequency: 50 or 60 Hz
Nominal power: 5 kW
Unit fuse: 16.0 A
Interior volume: 4 cu.ft.
Net weight of the unit (empty): 728 or 1089 lbs
Load per rack: 66 lbs
Permitted load: 132 lbs
Wall clearance back: 11.81 in
Wall clearance sidewise: 7.87 in
Width net: 38.58 in
Height net: 67.91 in
Depth net: 34.06 in
Interior width: 23.62 in
Interior height: 18.9 in
Interior depth: 15.75 in
Unit doors: 1
Sound-pressure level: 64 or 67 dB(A)
Energy consumption at 25 C and 60% RH: 1000 Wh/h
Number of shelves (std./max.): 1/4
Access port with silicone plug: 50 mm
