Binder·Cámaras climáticas

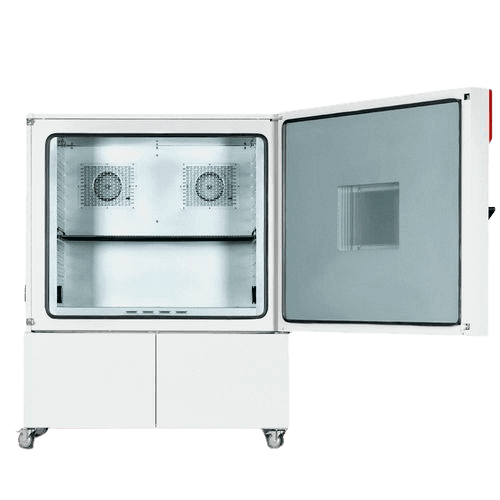

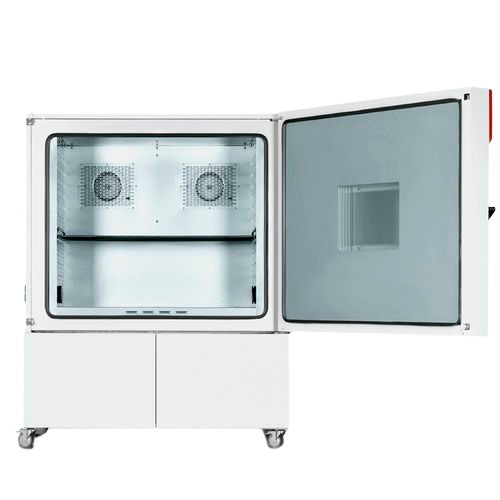

MKFT 720

MKFT 720 — cámara climática de Binder (Temperature range: -70...180 °C).

-70...180 °CRango de temperatura

10...98 % RHRango de humedad

20 litersIntegrated water-storage tank

Cotizar o consultar

Descripción

Conoce el equipo

MKFT 720 es un(a) cámara climática de Binder, indicado para estudios de estabilidad, control de temperatura y humedad, ensayos de fotoestabilidad. Especificaciones destacadas: Temperature range: -70...180 °C; Humidity range: 10...98 % RH.

Aplicaciones ideales

Resuelve tu aplicación

Estudios de estabilidad

Control de temperatura y humedad

Ensayos de fotoestabilidad

Especificaciones técnicas

Especificaciones
del MKFT 720

Temperature range: -70...180 °C
Humidity range: 10...98 % RH
Integrated water-storage tank: 20 liters
Temperature uniformity dependent on set value: 0.3...2.0 ± K
Temperature fluctuation dependent on set value: 0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-5 between -40 C and 180 C: 4.8 K/min
Cooling down time from 180 C to -70 C: 120 min
Average cooling down time according to IEC 60068-3-5 between 180 C and -40 C: 4.0 K/min
Temperature range with humidity: 10...95 °C
Temperature fluctuation with humidity dependent on set value: 0.1...1 ± K
Humidity fluctuation with humidity dependent on set value: ≤2,5 ± % r.F.
Max. heat compensation at 25 C and 90% RH: 800 W
Rated Voltage: 400 V
Power frequency: 50 Hz
Nominal power: 11 kW
Unit fuse: 32,0 A
Interior volume: 26 cu.ft.
Net weight of the unit (empty): 1,400 lbs
Load per rack: 88 lbs
Permitted load: 353 lbs
Wall clearance back: 11,81 in
Wall clearance sidewise: 7,87 in
Housing dimensions Width net: 62.2 in
Housing dimensions Height net: 78.94 in
Housing dimensions Depth net: 44.88 in
Interior width: 47.24 in
Interior height: 40.16 in
Interior depth: 23.62 in
Unit doors: 1
Sound-pressure level: 69 dB(A)
Energy consumption at 25 C and 60% RH: 2,200 Wh/h
Number of shelves (std./max.): 1/11
Access ports with silicone plugs: 80 mm
