MultiClamp 700B

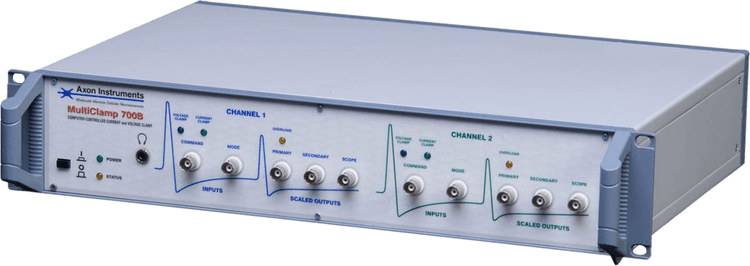

MultiClamp 700B — instrumento de electrofisiología de Molecular Devices (Dimensions: 3.5 (H) x 19 (W) x 12 (D) in.).
3.5 (H) x 19 (W) x 12 (D) in.Dimensiones
8.9 (H) x 48.3 (W) x 30.5 (D) cmDimensiones
10 lbs.Peso
Descripción
Conoce el equipo
MultiClamp 700B es un(a) instrumento de electrofisiología de Molecular Devices, indicado para registro de canales iónicos, patch clamp, estudios de membrana celular. Especificaciones destacadas: Dimensions: 3.5 (H) x 19 (W) x 12 (D) in.; Weight: 10 lbs..
Aplicaciones ideales
Resuelve tu aplicación
Registro de canales iónicos
Patch clamp
Estudios de membrana celular
Especificaciones técnicas
Especificaciones
del MultiClamp 700B
- Dimensions
- 3.5 (H) x 19 (W) x 12 (D) in.
- Dimensions
- 8.9 (H) x 48.3 (W) x 30.5 (D) cm
- Weight
- 10 lbs.
- Weight
- 4.54 kg
- Headstage Dimensions
- 0.875 (H) x 1.625 (W) x 2.3125 (D) in.
- Headstage Dimensions
- 2.0 (H) x 4.0 (W) x 8.4 (D) cm
- Channels
- 2
- Communications
- USB 1 Type B female ports
- Rack use
- Standard 19" rack-mount (2U) with handles
- Power
- 85–260 Vac 50–60 Hz, 30 watts (max.)
- Computer Processor
- 1 GHz or better
- Computer OS
- Windows XP Pro / 2000 / 98 SE or Mac OS X 10.4.6 (Tiger)
- Computer RAM
- 512 MB
- Computer HD space
- 500 MB
- Computer USB ports
- 2
- Seal test frequency
- 2–1000 Hz
- Pulse duration
- 0.1–500 ms
- Zap duration
- 0.025–50 ms
- Tuning frequency
- 2–1000 Hz
- Buzz duration
- 0.05–500 ms
- Voltage-clamp Holding
- ±1000 mV
- Pipette offset Voltage-clamp
- ±100 mV
- Current-clamp Range 50 MΩ Rf
- ±200 nA
- Current-clamp Range 500 MΩ Rf
- ±20 nA
- Current-clamp Range 5 GΩ Rf
- ±2 nA
- Pipette offset Current-clamp
- ±200 pA
- Lowpass Bessel cutoff
- 2–30 kHz
- Butterworth cutoff
- 3–45 kHz
- Highpass cutoff
- 0.1–300 Hz
- Scope filter Lowpass cutoff
- 1, 3, 10 kHz
- Post-filter gain
- 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000
- VCO range
- 4 kHz at +100 mV to 0.3 kHz at -100 mV
- CV-7B Feedback resistor Voltage-clamp
- 50 GΩ, 5 GΩ, 500 MΩ, 50 MΩ
- CV-7B Noise 50 GΩ 10 kHz
- 0.28 pArms
- CV-7B Noise 5 GΩ 10 kHz
- 0.9 pArms
- CV-7B Noise 500 MΩ 10 kHz
- 1.4 pArms
- CV-7B Noise 50 MΩ 10 kHz
- 4.0 pArms
- Fast capacitance compensation magnitude 50 GΩ
- 12 pF
- Fast capacitance compensation magnitude other ranges
- 36 pF
- Fast capacitance compensation tau
- 0.5–1.8 μs
- Slow capacitance compensation magnitude 50 GΩ
- 0–1 pF
- Slow capacitance compensation magnitude other ranges
- 0–3 pF
- Slow capacitance compensation tau ranges
- 10–200 and 200–4000 μs
- Series Resistance compensation Bandwidth
- 0.32–16 kHz
- CV-7B Current-clamp Gain Rf
- 5 GΩ, 500 MΩ, 50 MΩ
- CV-7B Compliance
- ±3 V
- CV-7B Rise time 50 MΩ range
- <10 μs
- CV-7B Rise time 500 MΩ range
- <30 μs
- CV-7B Rise time 5 GΩ range
- <150 μs
- Pipette capacitance neutralization
- -8–16 pF
